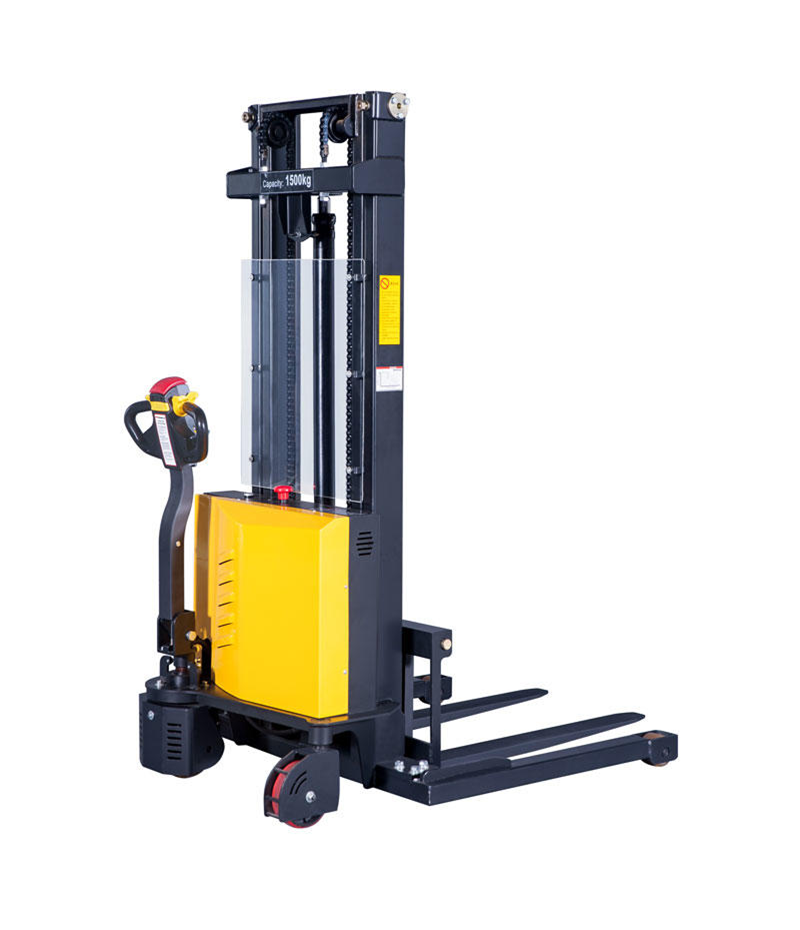

1.5T Full Electric Stacker – Wide

Description

The 1.5T Full Electric Stacker – Wide is designed for efficient, safe, and effortless material handling in warehouses, factories, and distribution centers. With a 1500kg lift capacity and a maximum lift height of 3300mm, it’s built to handle heavy loads with precision. Featuring a wide adjustable fork design (200mm–800mm) and robust polyurethane wheels, this stacker offers excellent stability and smooth manoeuvrability. Its powerful dual 12V 85Ah batteries provide up to 9 hours of continuous operation or 4 days of periodic use, making it ideal for high-demand environments.

Key Features:

• Lift Capacity: 1500kg (1000kg at 3300mm lift height)

• Lift Height: 3300mm

• Load Centre Distance: 600mm

• Wheel Base: 1255mm

• Mast Heights: Extended – 3816mm; Lowered – 2200mm

• Fork Dimensions: Length – 1070mm; Width – 160mm; Adjustable outer width – 200mm–800mm

• Lowered Fork Height: 70mm

• Travel Speed: 3.5km/h (laden), 4km/h (unladen)

• Lifting Speed: 100mm/s (laden), 112mm/s (unladen)

• Battery: 12V 85Ah x 2 – up to 9 hours continuous / 4 days periodic use

• Wheels: Durable polyurethane for smooth handling

• Service Weight: 520kg (with batteries)

Lead time: Estimate of 3-5 Working days depending on stock availability
