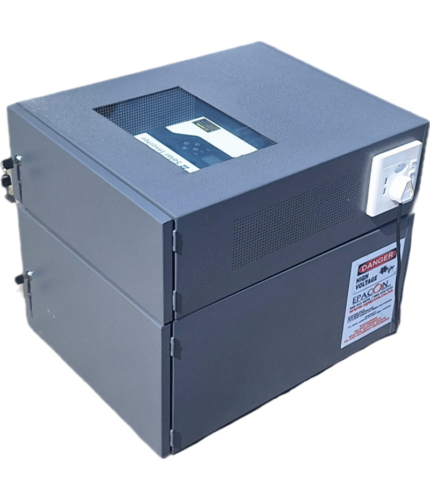

3.6KW Plug and Play Inverter System

Description:

A compact, all‑in‑one hybrid inverter system offering 3.6 kW continuous (3.6 kVA) output.  This unit is perfect for residential backup during load-shedding.
Easy to use plug and play inverter system.  The lockable cabinet makes it safer for a household with small children.
The unit has 4 x 50mm wheels which makes it mobile and easy to maneuver.  Perfect to take along on camping trips.
This 3.6 kW Plug & Play Hybrid Inverter System offers reliable, high-efficiency backup with solar-ready charging, robust battery storage, and smart monitoring—all housed in a user-friendly plug-and-play package. It’s designed to support essential appliances during outages while optimizing solar usage and protecting your gear.
The unit comes complete with USB ports for easy charging of phones and other equipment.

Inverter Specification:

• Pure sine wave
• Power factor 1.0
• PV input Voltage 120Vdc~450Vdc
• Built-in MPPT 106A
• Lockable Cabinet
• WIFI remote monitoring optional
• Support multiple output priority: UTL, SOL, SBU
• RS485 BMS Communication
• Lithium battery activation
• 5 Year Warranty
• Size: 438 x 295 x 105 – 7kg

Battery Description:

•  24v 106ah 2.71kWh Lithium Battery LiFePO4
• Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than a lead acid battery, helping to minimize replacement cost and reduce the total cost of ownership.
• Lighter Weight: About 40% of the weight of a comparable lead acid battery.
• Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity.
• Wider Temperature Range: -20 C~60 C.
• Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

Battery Specification:

• Nominal Voltage : 25.6v
• Nominal Capacity : 106Ah
• Nominal Power: 2.7kWh
• Dimensions : 442 x 139 x 420
• Weight : 25Kg
• Discharge Cut-Off : 24v
• Charge Voltage : 29.2v
• Continuously Charge / Discharge Current : 50A
• Max Standard Charge / Discharge Current : 100A
• Standard Charge / Discharge Current :50A
• SOC Range 5-100%

What’s in the box

• 1 x Lockable Cabinet
• 1 x Must 3.6kw Inverter
• 1x 24V 106ah 2.7kWh S Volt Lithium Battery LiFePO4
• 1 x Connection Cable to Wall plug
• Product Manuals
• 5 Years Warranty

Lead time: Estimate of 3-4 Working days depending on stock availability
